Next generation of adhesive bonded laminated cores
Advantages of adhesive stacking technique
- Enhanced geometrical and electromagnetic properties
- Reduced electrical losses
- Reduction of eddy currents
- Integration in punching process possible
- Increased motor efficiency due to higher stacking factor
Customer Benefits
- Freely accessible technology for every producer of laminated cores - easy in-house realisation
- Low investment due to possible integration of adhesive application unit into already existing production lines
- Adhesive stacking technique meets the increasing requirements for the production of high-efficiency motors versus commonly used technologies
- Increase of motor efficiency up to 3 %
- Reduced scrap rate due to reliable part quality
Commonly used technologies
Interlocking
+ Since long time state of the art (well known)
+ Possibility of integrating stacks and packaging in the punching tool
- Short circuit inevitable
Welding
+ Laser or gas-shielded metal welding
- Short circuits through weld seams
- Separate stacking and positioning necessary
- Thermal distortion
Backlack
+ No liquid chemicals in production
+ Already coated metal
+ High mechanical strength
- Relative thick (4μ) layer of coating
- Limited shelf life of coated metal
- Slow/complex process
Adhesive Bonding
+ Enhanced geometrical and electromagnetic properties
+ Improved stacking factor due to thin adhesive layer
+ Reduced electrical losses
+ Reduction of eddy currents
+ Integration in punching process possible

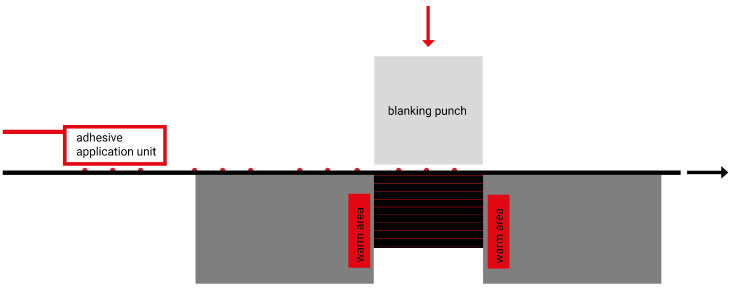

Process description
- In line, a sufficient number of tiny adhesive drops is applied to the coated steel strip.
- Metal strip feeding to the blanking punch.
- The metal laminations are punched out.
- The growing stack is held by a choke system and passes through a moderately heated area.
- After a short period of time the complete stack leaves the tool sufficiently bonded.
Engineered by BAUER Lean-Engineering GmbH
Adhesive properties
The low to medium viscosity products 2206 and 2124 are specially developed for reliable bonding of electrically insulated stator or rotor laminations into stacks. They are easy to dispense automatically. Curing can take place in a short time by increasing the temperature during the stamping process. 2124 can also be used in combination with the special solvent-based activators 2900 or 2901 to achieve fast curing at room temperature. The self-levelling, capillary flowing 2206 can only be cured thermally (≥ 100°C). Both adhesives lead to high-strength, slightly tough-elastic bonds that are also resistant to hot ATF oils.
Specifications 2124
Spezifikationen
| Eigenschaften | Bedingung |
|---|---|
| Produktkategorie | Modified Urethanacrylate |
| Farbe | Light yellow |
| Viskosität [mPas] | 300 - 500 |
| Zugscherfestigkeit [N/mm2] (Stahl-Stahl; DIN EN 1465) | >13 |
| Druckscherfestigkeit [N/mm2] (DIN EN ISO 10123) | >21 |
| Temperatureinsatzbereich [°C] | -55 – +175 |
Specifications 2206
Spezifikationen
| Eigenschaften | Bedingung |
|---|---|
| Produktkategorie | Modified Urethanacrylate |
| Farbe | Light yellow |
| Viskosität [mPas] | 55 - 85 |
| Zugscherfestigkeit [N/mm2] (Stahl-Stahl; DIN EN 1465) | >13 |
| Druckscherfestigkeit [N/mm2] (DIN EN ISO 10123) | >21 |
| Temperatureinsatzbereich [°C] | -55 – +175 |
